Innovative Smart Scrolling
Our Active Responsive Touch (ART) technology tracks finger position in real-time with our innovative Smart Scroll functionality. As you reach the last cell of the display line, the display refreshes automatically, offering a natural, seamless, immersive reading experience akin to reading a physical book.
Modern gesture-based operation
BrailleSense 7 introduces a modern Gesture UI, activated directly from the braille display. Just like flicking and tapping a smartphone screen, you can fly through tasks and documents without lifting your hands from the display to perform commands and general operations, ensuring real-time data verification with less interruption.
Unique alternative interfaces
An Analog Scroll Wheel allows users to quickly skim and scroll documents in a similar way a sighted person uses a mouse. Scroll a document with one hand, while following the braille with another. An extensive front panel interface offers even more unique methods for command and operation.
Input your way
In addition to its built-in Perkins-style keyboard, BrailleSense 7 also Supports a Detachable QWERTY Keyboard allowing for high-speed typing in a familiar layout, maximizing efficiency for all users in a variety of situations.
Advanced Productivity Tools
With the 7th generation of our BrailleSense Braille tablet, we continue to bring our classic Braille-centered interface to the modern education and professional market; offering production of professionally formatted Word and Excel files, an enhanced Web browsing experience, and a robust suite of applications to help the modern student and professional manage work, school and life. In addition, new applications such as our Video and Play Store Search, as well as our new Quick Menu and Shortcuts Manager, bridge the gap between traditional BrailleSense access and modern Android functionality.
Versatile connectivity
BrailleSense 7 offers two USB-C ports and two USB-A ports as well as HDMI for convenient connectivity of multiple and various peripherals, including printers, keyboards, USB audio devices, cameras, drives and visual displays.
Robust Screen reader Support
BrailleSense 7 features USB and Bluetooth legacy Braille Terminal support, as well as the modern HID Braille standard, with the ability to connect multiple devices at once. BrailleSense 7 also offers Remote PC Screen Reader Control anywhere you have a Wi-fi connection, with either Braille or a full QWERTY interface, via NVDA Remote Support.
OS
Android™ 15
Braille Display
40 Refreshable braille cells and touch capacitive cursor routing
Dimensions & Weight
301.2 x 140.5 x 19 (mm) / 818g
Internal Hardware Specifications
CPU: Octa-core (Up to 3.35GHz)
Memory: 8GB LPDDR5X
Storage: 256GB USF 4.0
Wi-Fi: 802.11 a/b/g/n/ac, Dual-band, 2T2R
Bluetooth: 5.3 Dual mode for LE and Classic
Camera: 20MP High-resolution camera with flash
GPS: Dual-band GPS(L1, L5)
Sensors: Accelerometer, Gyroscope, M-Sensor (Compass)
Camera: 20MP High-resolution camera with Flash
Keys, Buttons & ports

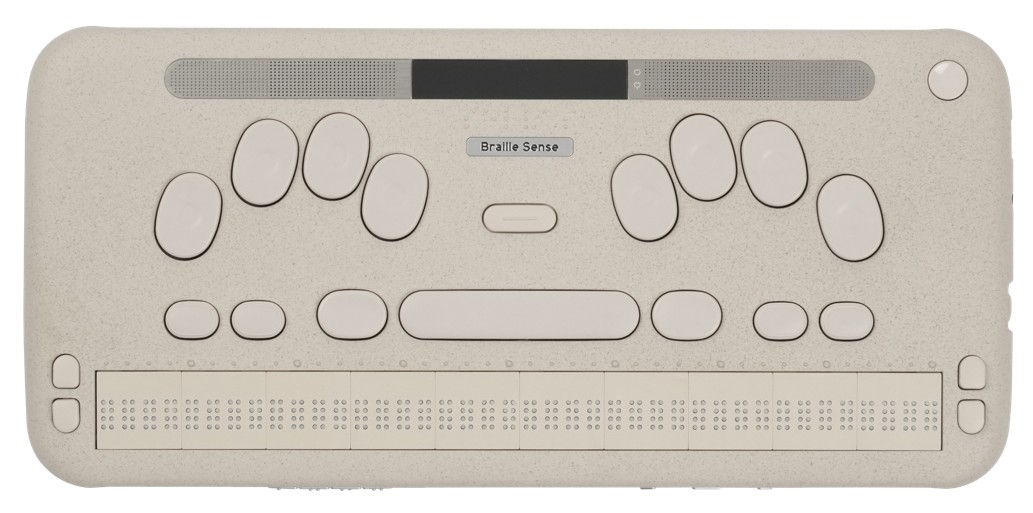

Top panel: 9-key Perkins keyboard with ctrl, alt, center and 4 function keys, Scroll (2 x 2), and Power button

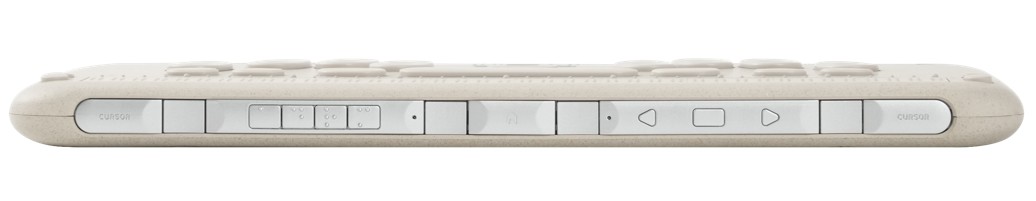

Front edge: L/R Cursor keys, Audio mode buttons, Home key, and Media controls

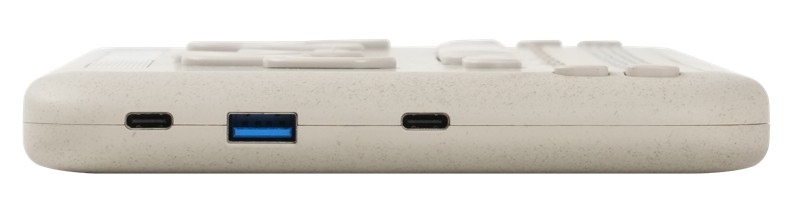

Left edge: USB C OTG port, USB A host port, USB C host port

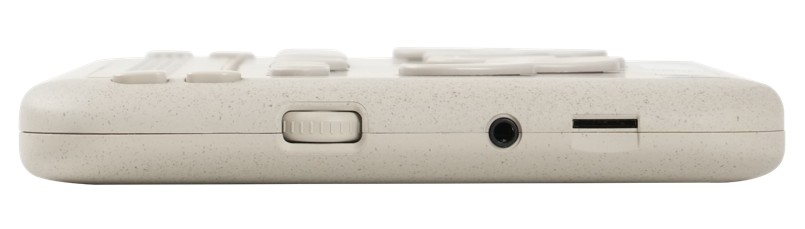

Right edge: Micro SD card slot, 3.5mm Combo audio Jack, Scroll-wheel
Back edge: USB A host port, Power bank pogo pin connector, HDMI port
Auxiliary Storage
Micro SD card
USB flash drive
Audio
Max 2.5 Watt Enclosure Stereo Speaker
MEMS Stereo Microphones
Headset microphone support (4-pole audio jack)
Connectivity
USB C OTG port (3.0 client, 2.0 host)
USB C 3.0 host port
2 x USB A host ports (left edge 3.0, back 2.0)
Battery & Power supply
Li-Poly 3.8V 4600mAh / Replaceable battery / Approx. 15 hours battery run time
Power Delivery up to 18W (9V 2A) / Approx. 2.5 hours charging time
Power Bank
Li-ion 3.6V 6500mAh
Additional power approx. 6 hours
Approx. 3 hours charging time.
* Charges via main unit
Supported file formats
Read/Write: XLSX, DOCX, TXT, RTF, HBL, BRF, BRL, GF, PEF
Read: DOC, DOCX, PPT, PPTX, XLS, XLSX, EPUB, HTM, HTML, PDF, TXT, RTF, XML, BRL, BRF, GF,PEF
DAISY: DAISY 2.0/2.02/3.0, DAISY XML/Digital Talking Book, ANSI/NISO Z39.86 4002, 4005, Bookshare.org DAISY Content, NIMAS 1.1, DRM: 4006 PDTB2
Media: ASF, AAC, FLAC, M3U, MIDI, MOV, MP3, MP4, AVI, MPG, OGG, PLS, WAV, WAX, WMA, WMV
Pre-installed Applications
File Manager (flashdisk, Auxiliary storage, Google Drive, OneDrive, Dropbox, Favorites)
Office Tools (Notepad, Word Processor, Excel editor, PowerPoint Viewer, E-mail)
Organizer (Address Manager, Schedule Manager, Database Manager, To Do List)
Web Tools (Web Browser, Google Search, Wiki Search, BrailleSense ChatGPT*, Play Store Search*)
Library (DAISY Player, Document Reader, Online DAISY, Bookshare Download, Sense Dictionary, Sense Bible*, BARD Braille*, NFB Newsline*)
Media (Media Player, Podcasts, Web Radio, Web TV, Voice Recorder, Video Search*)
Utilities (Calculator, BrailleSense Math, Clock and timer functions, restore and format, Upgrade firmware.)
Braille Display Connectivity (USB HID, USB Legacy, Bluetooth, NVDA remote)
Extras (Braille Practice, Sense Brain Game, Sense Dice game, Sense Roulette Game, Words With HIMS*)
Settings (Braille, Gesture, Voice and other options, Bluetooth and Wi-fi Connectivity, menu management and Android System settings)
Help and Information (Quick start Guide, User Guide, Information About The BrailleSense)
* = Optional Add-on apps
